| Product name | Properties | Unit | Lead time | |||||||||||||

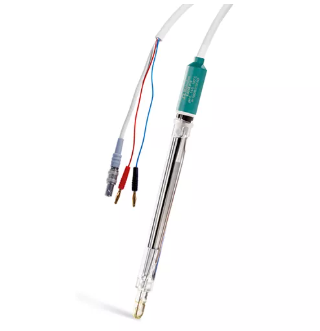

| Unitrode with Pt1000 (fixed cable 1.2 m, 2 mm), #6.0258.010 | Shaft material : Glass Measuring range (theoretical) : 0 ~ 14 Measuring unit : pH Temperature range, long-term (°C) : 0 ~ 80 Temperature range, short-term (°C) : 0 ~ 100 pH range : 0 ~ 14 Max. installation length (mm) : 113 SGJ sleeve : Flexible SGJ sleeve Shaft diameter top (mm) : 12 Shaft diameter bottom (mm) : 12 Min. immersion depth (mm) : 25 Electrode plug-in head : Fixed cable with plug F Temperature sensor : Pt1000 (2 mm) Indicator electrode type : pH glass electrode Indicator electrode shape : Cylinder Membrane glass type : U Membrane resistance : 150 ~ 500 Electrode zero point (mV) : ± 15 Electrode slope : > 0.97 Internal reference electrode type : LL system Diaphragm : Fixed ground-joint diaphragm Reference electrolyte type : c(KCl) = 3 mol/L Electrolyte flow rate (μl/h) at 10 cm water column : 3 ~ 30 Reference system : LL system Resistance (kOhm) : 5 | 1/EA | 주문 후 1주 소요 | |||||||||||||
| Product name | Properties | Unit | Lead time | |||||||||||||
| Unitrode with Pt1000 (fixed cable 1.2 m, 2 mm), #6.0258.010 | Shaft material : Glass Measuring range (theoretical) : 0 ~ 14 Measuring unit : pH Temperature range, long-term (°C) : 0 ~ 80 Temperature range, short-term (°C) : 0 ~ 100 pH range : 0 ~ 14 Max. installation length (mm) : 113 SGJ sleeve : Flexible SGJ sleeve Shaft diameter top (mm) : 12 Shaft diameter bottom (mm) : 12 Min. immersion depth (mm) : 25 Electrode plug-in head : Fixed cable with plug F Temperature sensor : Pt1000 (2 mm) Indicator electrode type : pH glass electrode Indicator electrode shape : Cylinder Membrane glass type : U Membrane resistance : 150 ~ 500 Electrode zero point (mV) : ± 15 Electrode slope : > 0.97 Internal reference electrode type : LL system Diaphragm : Fixed ground-joint diaphragm Reference electrolyte type : c(KCl) = 3 mol/L Electrolyte flow rate (μl/h) at 10 cm water column : 3 ~ 30 Reference system : LL system Resistance (kOhm) : 5 | 1/EA | 주문 후 1주 소요 | |||||||||||||
