COPPER ETCHANTS ( Synonyms : Cu etchant, 구리에천트)
최소구매수량 (MOQ) = 2EA
Unit : 1Gallon
Lead time : 2weeks

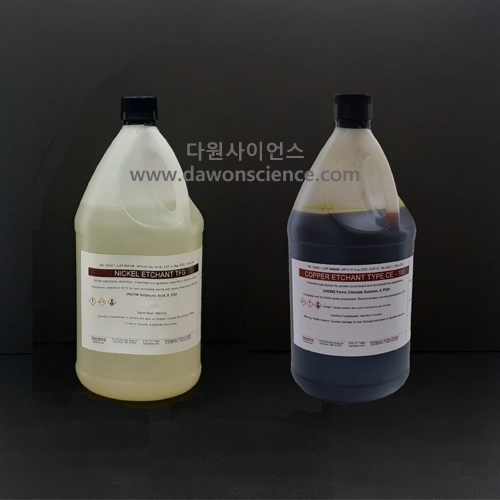

PROPERTIES OF TRANSENE COPPER ETCHANT CE-100
| How do I increase the etch rate? | 1. The rate will approximately double with every 10°C increase in temperature. 2. Increase the rate of stirring or agitation. |
| How do I reduce the etch rate? | Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%. |
| Do I need to dilute the etchant? | No, it is ready to use. |
| How do I reduce undercutting? | Increase the rate of stirring or agitation. |
| Appearance | Brown |
| pH | Acidic |
| Etch Rate at 40°C | 1 mil/minute (etches 1 oz copper in 90 seconds) |
| Etch Capacity (rate declines at ~70%) | 19 oz/gallon |
| Shelf Life | 1 year |
| Storage Conditions | Ambient |
| Filtration | 1 um |
| Recommended Operating Temperatures | 20-80oC (30-40oC most common) |
| Rinse | Deionized water |
| Photoresist Recommendations | KLT6000 Series, KLT 5300 Series, HARE SQ (SU-8 type), TRANSIST, or PKP-308PI |
| Select Compatible Materials | Au, oxide, nitride, alumina See https://transene.com/etch-compatibility/ for more details. |
| Select Incompatible Materials | Al, Ni, Ti |
| Compatible Plastics | HDPE, PP, Teflon, PFA, PVC |
| Country of Origin | USA |
| Availability | Stock item |
| Available Sizes | Quart, Gallon, 5 Gallon, 55 Gallon |
| Packaging | HDPE |
| Packing | 4 gallons/case |
| Isotropy | Isotropic |
| Incompatible Chemicals | Strong bases, nitric acid |
| Additional Information | Immersion or spray application |
